Produk / TOSHIBA T8 LED Pro Tube

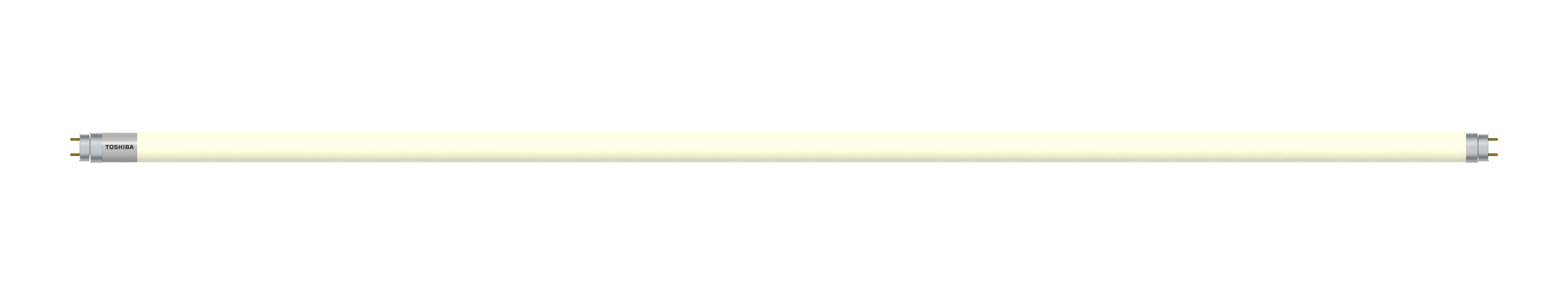

TOSHIBA T8 LED Pro Tube
The Toshiba LED T8 Tube provides optimal lighting for a variety of applications, including offices, factories, and public spaces. It delivers bright illumination with high lumen output while ensuring low energy consumption and extended lifespan. Enjoy high performance with minimal power usage and long-lasting reliability.
| T8 LED Luminaires |
Kategori :
1-10W, 0-1,000lm, IP 20, 1,001-2,000lm, IP Rating, MyHijau, Lumen Keluaran, NEA ELS, Watt, SIRIM, SKEM, ST
Aplikasi :
T8 LED Luminaires
Warna :
-
Warm White
-
Daylight
-
Cool White
Body
Polycarbonate (PC)
End Cap
Polybutylene Terephthalate (PBT)
Pin
Copper Alloy
Cap Base
G13
Shape Rated
T8
Dimmable
No
Conformity
IEC62776, IEC62471, IEC62493, RoHS
Wattage Equivalent
Fluorescent 18W & 36W
Model
RLDL0282C08**G1EX1
CCT
3000K, 4000K, 6500K
System Lumen (lm)
1000 (Warm White), 1100 (Cool White & Daylight)
System Power (W)
8
System Current (A)
0.039
Efficacy (lm/W)
125 (Warm White), 138 (Cool White & Daylight)
Main Supply (V, Hz)
220~240V, 50/60Hz
IP Grade
IP 20
Classification
Class I
Power Factor
PF ≥ 0.9
Operating Temperature (ta)
-20°C ~ 45°C
Rated Lifespan
50,000 Hrs
CRI
> 80 Ra
SDCM
≤ 6
THD
≤ 15%
Beam Angle
160⁰
LSF (6,000hrs)
90%
LLMF (6,000hrs)
95.8%
Model
RLDL0284C14**G1EX1
CCT
3000K, 4000K, 6500K
System Lumen (lm)
1900 (Warm White), 2100 (Cool White & Daylight)
System Power (W)
14
System Current (A)
0.068
Efficacy (lm/W)
136 (Warm White), 150 Cool White & Daylight)
Main Supply (V, Hz)
220~240V, 50/60Hz
IP Grade
IP 20
Classification
Class I
Power Factor
PF ≥ 0.9
Operating Temperature (ta)
-20°C ~ 45°C
Rated Lifespan
50,000 hrs
CRI
> 80 Ra
SDCM
≤ 6
THD
≤ 15%
Beam Angle
160⁰
LSF (6,000hrs)
90%
LLMF (6,000hrs)
90%
| Model | Product Weight (Kg) | Carton Size (mm) | Gross Weight (Kg) | Quantity | ||
|---|---|---|---|---|---|---|
| L | W | H | ||||
| RLDL0282C0830G1EX1 | 0.101 Kg | 650 mm | 165 mm | 175 mm | 4.49 Kg | 25 pcs / Carton |
| RLDL0282C0840G1EX1 | 0.101 Kg | 650 mm | 165 mm | 175 mm | 4.49 Kg | 25 pcs / Carton |
| RLDL0282C0865G1EX1 | 0.101 Kg | 650 mm | 165 mm | 175 mm | 4.49 Kg | 25 pcs / Carton |
| RLDL0284C1430G1EX1 | 0.216 Kg | 1260 mm | 165 mm | 175 mm | 8.4 Kg | 25 pcs / Carton |
| RLDL0284C1440G1EX1 | 0.216 Kg | 1260 mm | 165 mm | 175 mm | 8.4 Kg | 25 pcs / Carton |
| RLDL0284C1465G1EX1 | 0.216 Kg | 1260 mm | 165 mm | 175 mm | 8.4 Kg | 25 pcs / Carton |
Datasheet - Toshiba T8 LED Pro Tube
5.09 MB
