Produk / T8 LED BARE BATTEN FITTING – OS BC SERIES

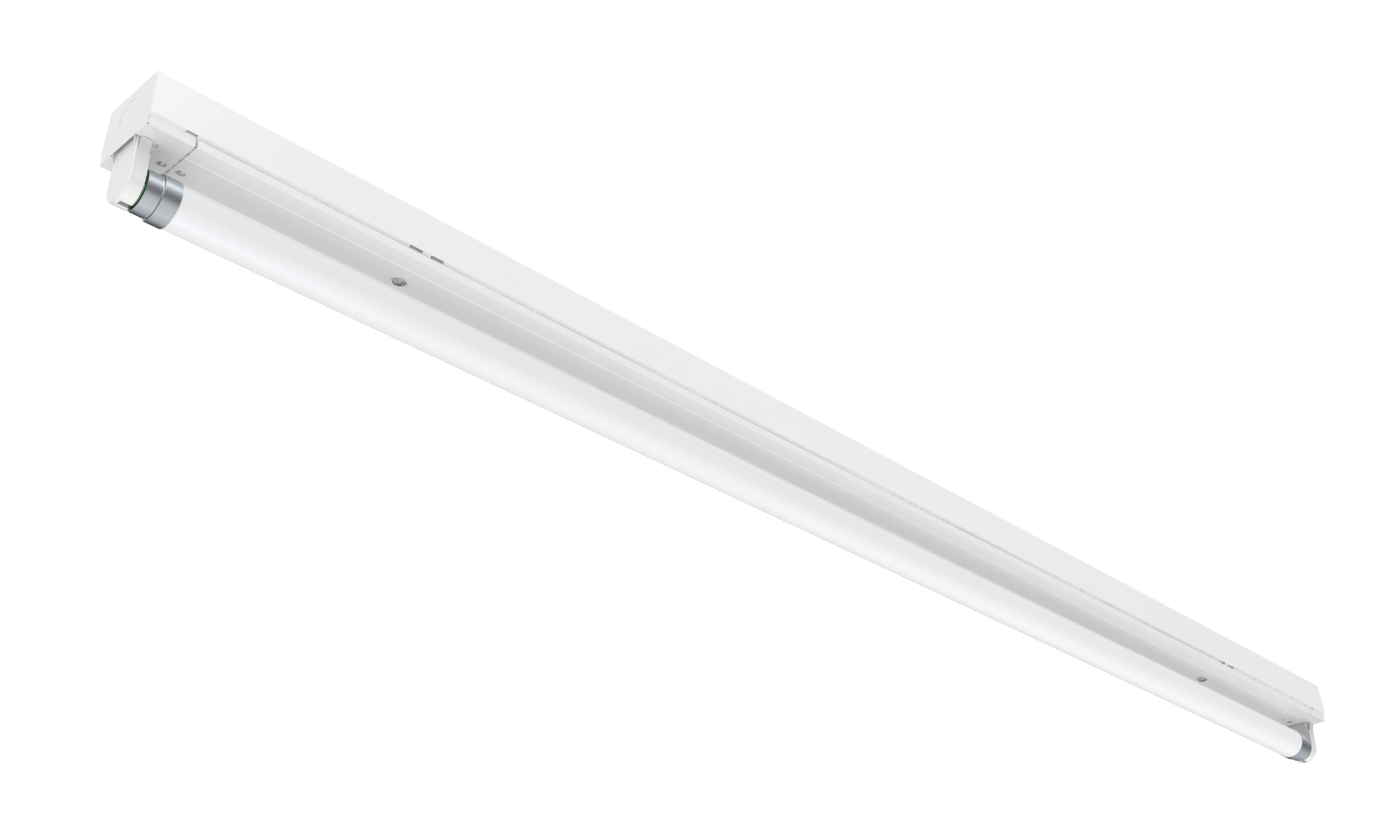

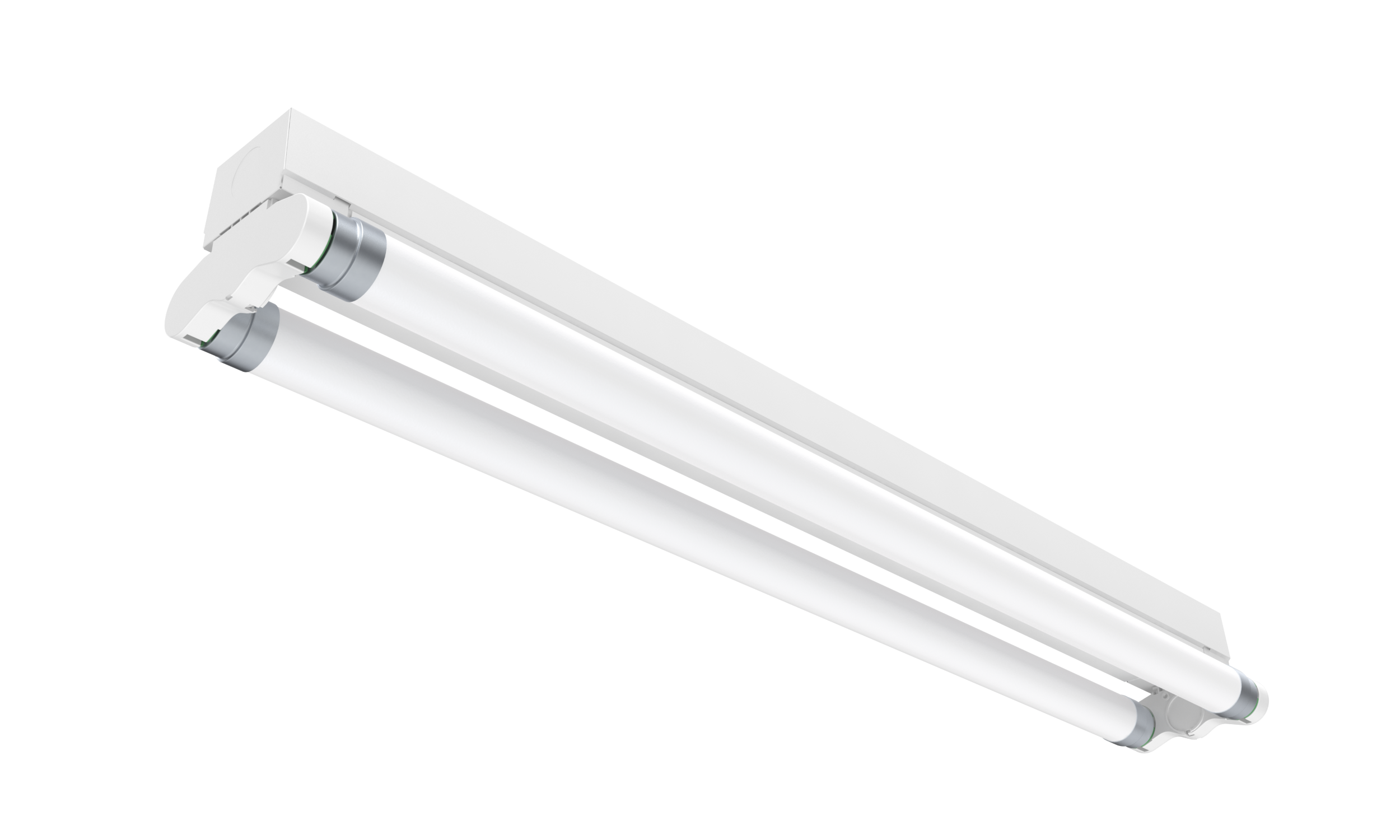

T8 LED BARE BATTEN FITTING – OS BC SERIES
Experience the durability and elegance of the OS BC Batten fitting. Crafted from mild steel with a smooth finish, its optimized design seamlessly accommodates power packs. Ideal for various applications.
Kategori :
IP 20, Certification, Mounting Type, IP Rating, Surface Ceiling, Surface Wall, Suspension, SIRIM, ST
Aplikasi :
Office, School, Laboratory, Hospitals, Factory, Warehouse, Restaurants, Public Toilets, Supermarkets, Shopping Complexes, Workshops, Corridors
Warna :
-
Smooth White
Brand
Toshiba
Lifetime
25000 Hours
CCT
Warm White (3000K)
Cool White (4000K)
Daylight (6500K)
Warranty
1 Year
Beam Angle (°)
>150°
Efficacy (lm/W)
>100
CRI (Ra)
>80
Power Factor
>0,5
IP Rating
IP 20
T0.3mm Mild Steel Housingr
Electrostatically Polyester Powder Coated
Compatible with Powerpack
G13 Polycarbonate & Bronze Lampholder
Nylon Connecting Device
Surface Ceiling / Wall / Suspension
| Model | Product Weight (Kg) | Carton Size (mm) | Gross Weight (Kg) | Quantity | ||
|---|---|---|---|---|---|---|
| L | W | H | ||||
| OS BC 1 x 600mm | 0.30 kg | 612 | 98 | 82 | 3.15 kg | 10 pcs / Bundle |
| OS BC 2 x 600mm | 0.30 kg | 1220 | 98 | 82 | 3.20 kg | 10 pcs / Bundle |
| OS BC 1 x 1200mm | 0.57 kg | 612 | 98 | 82 | 5.85 kg | 10 pcs / Bundle |
| OS BC 2 x 1200mm | 0.57 kg | 1220 | 98 | 82 | 5.85 kg | 10 pcs / Bundle |
| Model | Base | Dimension | ||
|---|---|---|---|---|
| L | W | H | ||
| OS BC 1 x 600mm | G13 | 612 mm | 52 mm | 72 mm |
| OS BC 2 x 600mm | G13 | 612 mm | 89 mm | 70 mm |
| OS BC 1 x 1200mm | G13 | 1222 mm | 52 mm | 72 mm |
| OS BC 2 x 1200mm | G13 | 1222 mm | 89 mm | 70 mm |
Data Sheet - OS BC 2x1200mm - TOSHIBA T8 LED (PRO) - 14W - VECK - SSR
558.37 KB
Data Sheet - OS BC 2x1200mm - TOSHIBA T8 LED - 18W - VECK - SSR
543.2 KB
Data Sheet - OS BC 1x1200mm - TOSHIBA T8 LED (PRO) - 14W - VECK - SSR
531.2 KB
Data Sheet - OS BC 1x1200mm - TOSHIBA T8 LED - 18W - VECK - SSR
515.57 KB
Data Sheet - OS BC 2x600mm - TOSHIBA T8 LED (PRO) - 8W - VECK
508.45 KB
Data Sheet - OS BC 2x600mm - TOSHIBA T8 LED - 9W - VECK
505.64 KB
Data Sheet - OS BC 1x600mm - TOSHIBA T8 LED - 9W - VECK
482.15 KB
Data Sheet - OS BC 1x600mm - TOSHIBA T8 LED (PRO) - 8W - VECK
484.29 KB
