LED EXIT SIGN – SURFACE BOX TYPE (SINGLE SIDED ONLY)
The VES 390/WP LED EXIT sign is ideal for outdoor and damp environments, such as coastal areas. With IP65 protection and constructed from a single molded piece, it ensures durability and reliability in challenging conditions.
Kategori :
1-10W, IP 20, Certification, IP Rating, Watt, SNI
Aplikasi :
Office, School, Laboratory, Hospitals, Factory, Warehouse, Retail Store, Cafes, Hotels, Supermarkets, Shopping Complexes
Warna :
-
Smooth White
Body
Fabricated from Extruded Aluminium
Diffuser
Polycarbonate Diffuser Panel with Sign
Wire
105°C Heat Resistance PVC Cable
Connector
Nylon 3 Way x 2.5mm2
Finishing
Electrostatically Polyester Powder Coated
Mounting Type
Surface Wall
Indicator
Green
ALWAYS ON Charging, No fault
INDICATOR LIGHT OFF Operating on battery mode
Lamp
LED 2835 (4PCS)
Battery
Ni-Cd AA 3.6V 900mAh
Main Supply (V, Hz)
220~240V, 50/60Hz
Mode of Operation
Maintained
System Power (W)
2.9 W
System Current (A)
0.01 A
Power Factor
PF ≥ 0.8
Emergency Duration
2 Hours
Recharge Period
15 Hours
Max. Operating Temperature (ta)
40°C
IP Grade
IP 20
Classification
Class I
Recommended Mounting Height
2.3 m
| Model | Product Weight (Kg) | Carton Size (mm) | Gross Weight (Kg) | Quantity | ||
|---|---|---|---|---|---|---|
| L | W | H | ||||
| VES 350/B | 0.82 Kg | 365 mm | 190 mm | 66 mm | 15.20 Kg | 15 pcs / Carton |

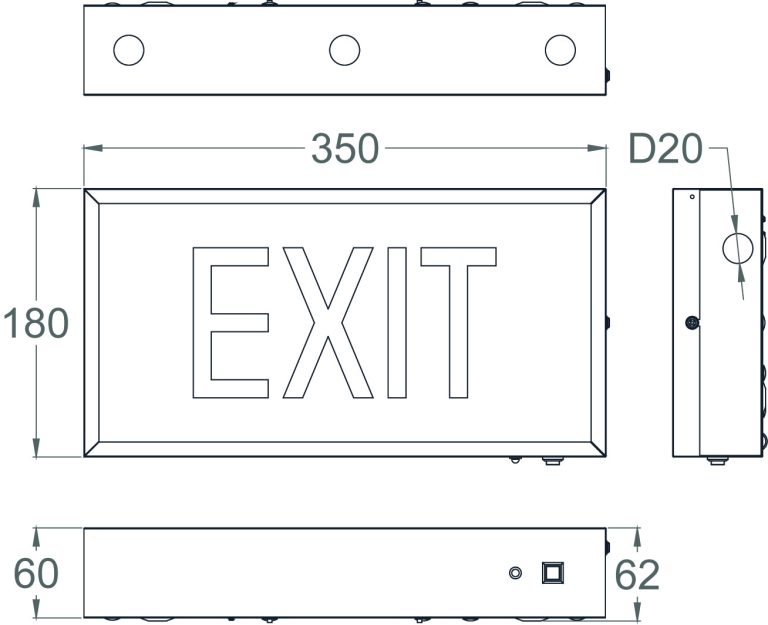

| Model | Base | Dimension | ||
|---|---|---|---|---|
| L | W | H | ||
| VES 350/B/E | “Exit” Word Only | 350 mm | 62 mm | 180 mm |
| VES 350/B/EL | “Exit” Word + Arrow to Left | 350 mm | 62 mm | 180 mm |
| VES 350/B/ER | “Exit” Word + Arrow to Right | 350 mm | 62 mm | 180 mm |
DTS 1: Data Sheet – VES 350/B
397.87 KB
