Produk / LED EMERGENCY LIGHT (Surface Type) – VELR 90/S & VELR 110/S (PC)
LED EMERGENCY LIGHT (Surface Type) – VELR 90/S & VELR 110/S (PC)
The VELR 90/S surface LED emergency lights feature a sleek, compact design and are converted from recessed to surface mounting with injection moulded polycarbonate housing. Easy to install, they provide efficient and reliable emergency illumination, making them practical and essential for any safety system.
Kategori :
1-10W, IP 20, Bomba, IP 44, IP Rating, SIRIM
Aplikasi :
Office, School, Laboratory, Hospitals, Retail Store, Shophouse, Cafes & Restaurants, Hotels, Supermarkets, Shopping Complexes
Warna :
-
White Texture
Rim
Injection Moulded from Polycarbonate
Housing
Injection Moulded from Polycarbonate
Diffuser
Clear Polycarbonate Diffuser
Wire
105°C Heat Resistance PVC Cable
Connector
Nylon 3 Way x 2.5mm²
Finishing
Matte Surface with Smooth Finished Housing
Mounting Type
Surface Ceiling
Indicator
Green
ALWAYS ON No fault
FLASHING Charging
INDICATOR LIGHT OFF Operating on battery mode
Lamp
LED 5050 (1PC)
Battery
Ni-Cd AA 2.4V 1800mAh
Main Supply (V, Hz)
220~240V, 50/60Hz
Mode of Operation
Non-Maintained
System Power (W)
1.0 W
System Current (A)
0.01 A
Power Factor
PF ≥ 0.66
Emergency Duration
3 Hours
Recharge Period
15 Hours
Max. Operating Temperature (ta)
40°C
IP Grade
IP 44 (LED Module)
IP 20 (Lamp Fitting)
Classification
Class II
Recommended Mounting Height
Min. 3 m
| Model | Product Weight (Kg) | Carton Size (mm) | Gross Weight (Kg) | Quantity | ||
|---|---|---|---|---|---|---|
| L | W | H | ||||
| VELR 90/S (PC) | 0.60 Kg | - mm | - mm | - mm | - Kg | 30 pcs / Carton |

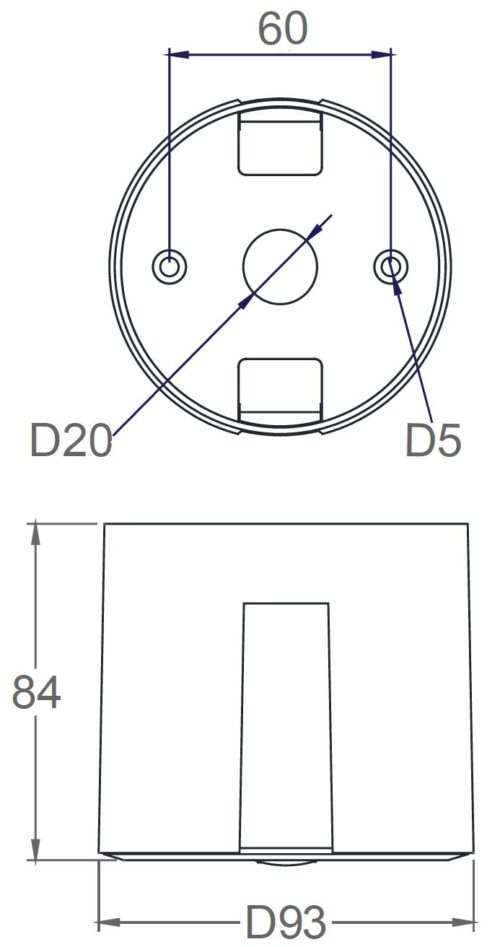

| Model | Base | Dimension | ||
|---|---|---|---|---|
| L | W | H | ||
| VELR 90/S (PC) | ⌀93 mm | 84 mm | ||
DTS 1: Data Sheet – VELR 90/S (PC Housing)
678.82 KB
